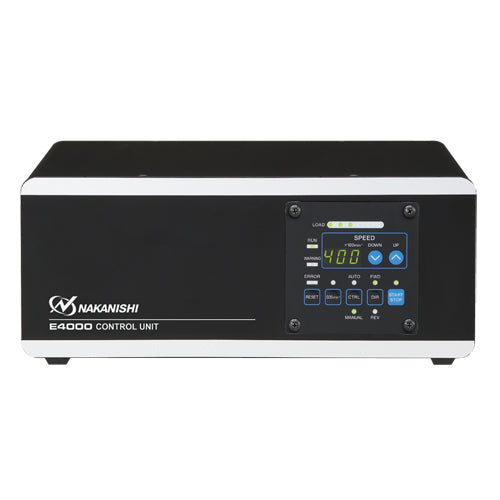

NSK Nakanishi E4000 NE246 Spindle Control Unit
NSK Nakanishi E4000 NE246 Spindle Control Unit
Availability:
In Stock
Product SKU:
NE246
Prop 65
Warning
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

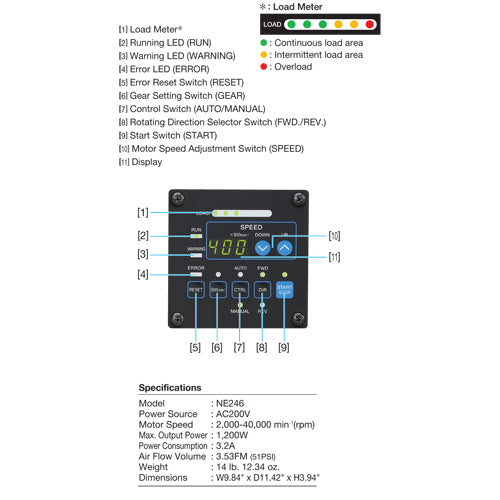

This NSK Control Unit has a "High grade feedback loop to maintain constant spindle speed even if load is varied", and "Gentle start/Quick stop functions" are provided. Motor speed is displayed precisely and digitally. Capable of setting the maximum motor speed for the allowable motor speed by the parameter setting. Ideal for use on special purpose machines, NC lathes, Robots, etc. for small diameter end milling, drilling, slitting, chamfering, grinding etc.
Specifications
Model: NE246
Power Source: AC 200V
Power Consumption: 1,200W
Weight: 14 Lb. 12.34 oz.
Dimensions: W84" x D11.42" x H3.94"
NSK Catalog Number: 8472
Included Equipment
• Power Cord 13'
• Air Hose with Filter
• Connector Cover (Provided).
• Connector Cap (Provided).
• Bracket - 4pcs.
• Rubber pad.
Specifications
Model: NE246
Power Source: AC 200V
Power Consumption: 1,200W
Weight: 14 Lb. 12.34 oz.
Dimensions: W84" x D11.42" x H3.94"
NSK Catalog Number: 8472
Included Equipment
• Power Cord 13'
• Air Hose with Filter
• Connector Cover (Provided).
• Connector Cap (Provided).
• Bracket - 4pcs.
• Rubber pad.
This NSK Control Unit has a "High grade feedback loop to maintain constant spindle speed even if load is varied", and "Gentle start/Quick stop functions" are provided. Motor speed is displayed precisely and digitally. Capable of setting the maximum motor speed for the allowable motor speed by the parameter setting. Ideal for use on special purpose machines, NC lathes, Robots, etc. for small diameter end milling, drilling, slitting, chamfering, grinding etc.
Specifications
Model: NE246
Power Source: AC 200V
Power Consumption: 1,200W
Weight: 14 Lb. 12.34 oz.
Dimensions: W84" x D11.42" x H3.94"
NSK Catalog Number: 8472
Included Equipment
• Power Cord 13'
• Air Hose with Filter
• Connector Cover (Provided).
• Connector Cap (Provided).
• Bracket - 4pcs.
• Rubber pad.
Specifications
Model: NE246
Power Source: AC 200V
Power Consumption: 1,200W
Weight: 14 Lb. 12.34 oz.
Dimensions: W84" x D11.42" x H3.94"
NSK Catalog Number: 8472
Included Equipment
• Power Cord 13'
• Air Hose with Filter
• Connector Cover (Provided).
• Connector Cap (Provided).
• Bracket - 4pcs.
• Rubber pad.
