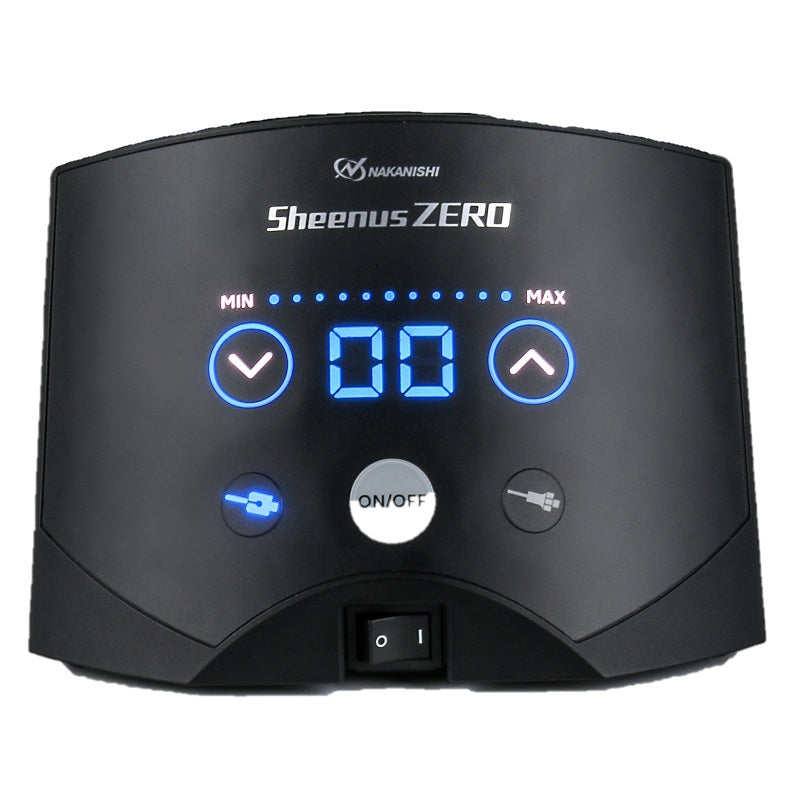

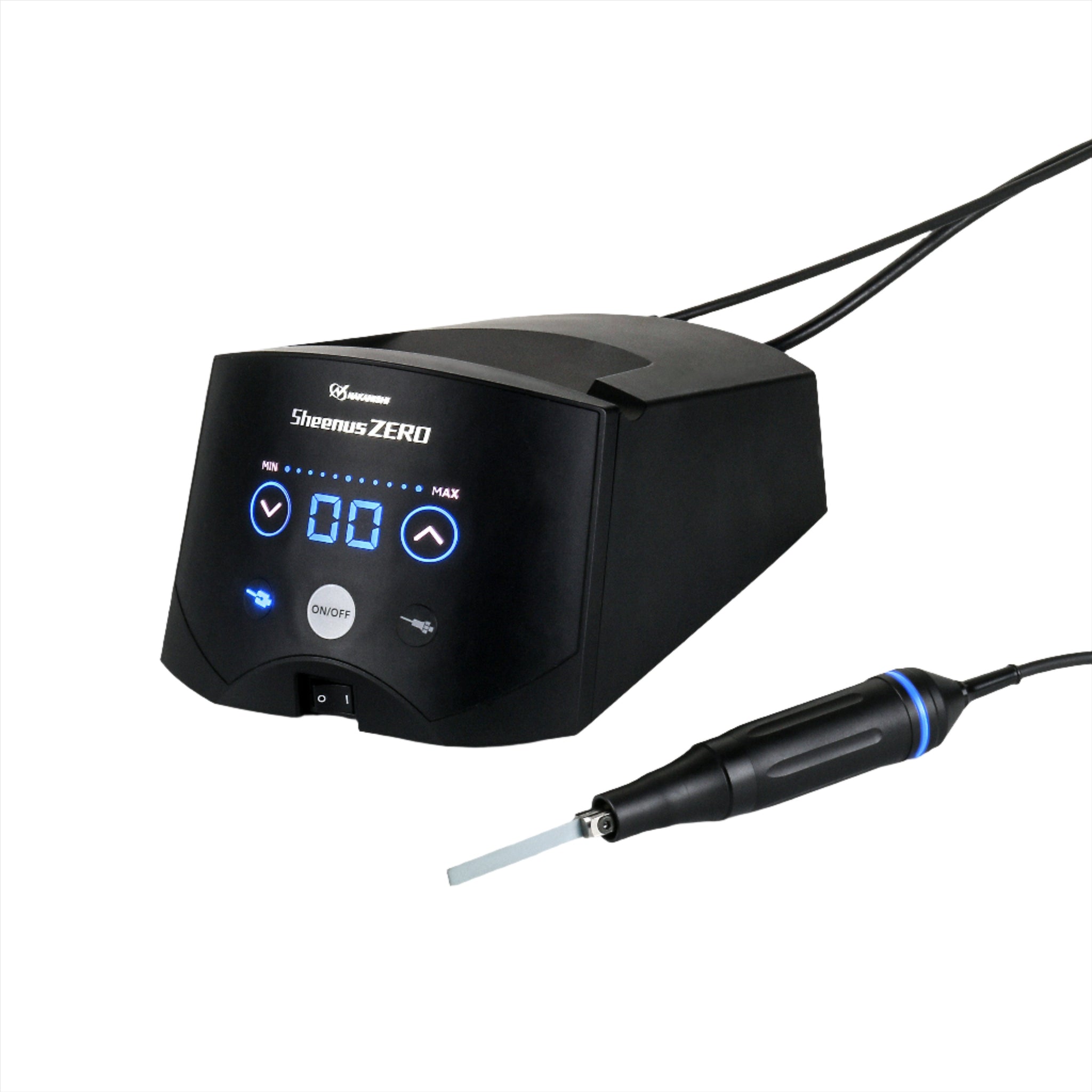

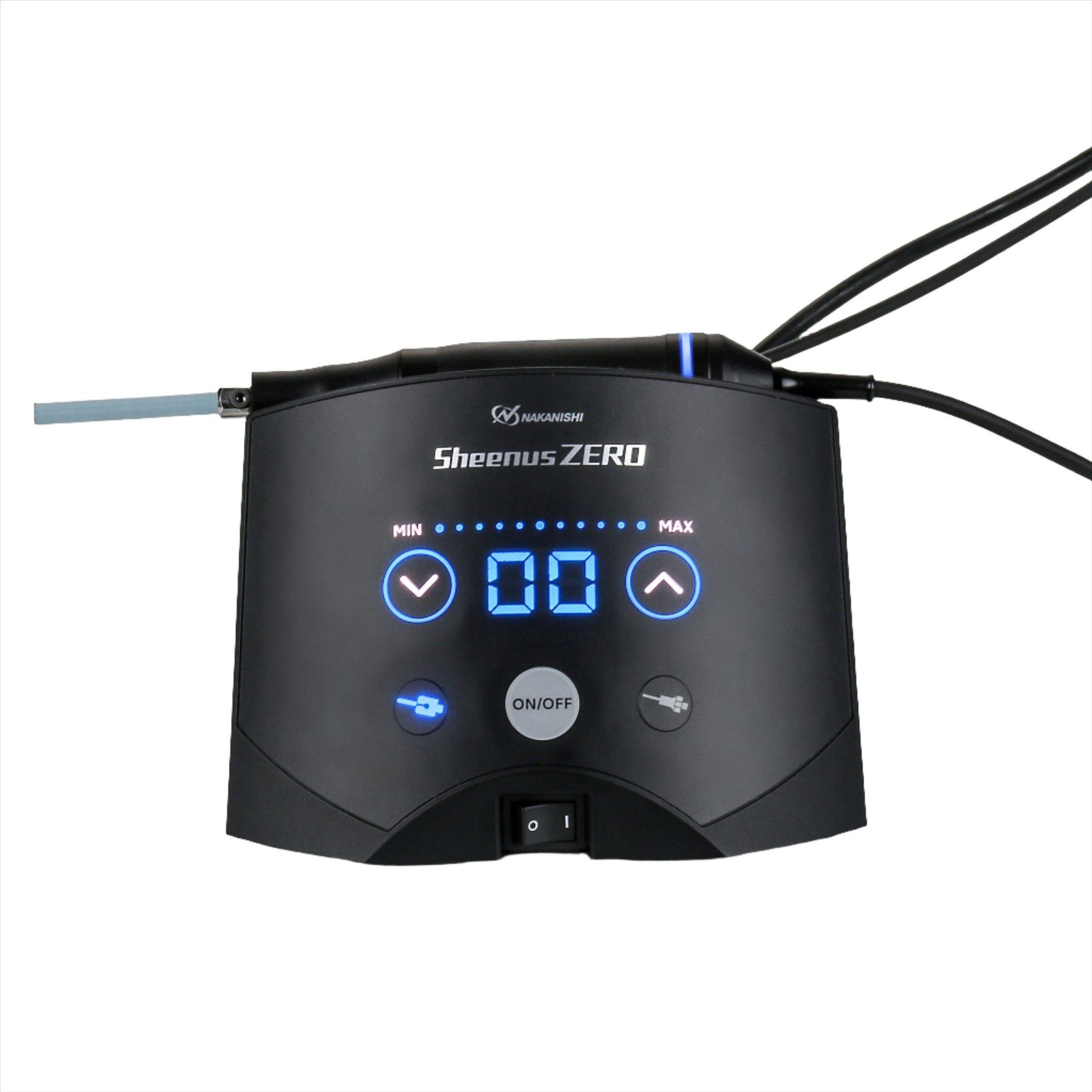

NSK Nakanishi Sheenus ZERO Ultrasonic Polisher
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
The NSK Nakanishi Sheenus ZERO Ultrasonic Polisher Set is the newest generation to the Sheenus line of ultrasonic polishers featuring higher power efficiency, better heat protection, lower power consumption, and lighter weight handpiece.
The Sheenus ZERO can be used for grinding, polishing and mirror finishing on a wide range of materials from aluminum dies to cemented carbide dies. It is also perfect for plastic molds, press, casting, forging, trimming and header dies. This ultrasonic polishing tool quickly removes hard layers of EDM deposits and polishes difficult areas such as complex corners and ribs. Its capabilities include bur removal, grinding and polishing of precision molds, dies electronic and ceramic components.
Specifications:
• Controller Model : NE330 120V
• Power Source : AC120V / 60Hz
• Power consumption : 100VA
• Dimensions : W6.34" x D10.08" x H3.31"
• Oscillation frequency : 19 kHz - 29 kHz
• Power conditioning : Continuous variable type
• Frequency control : Auto-tracking type
• Output power : UNCLAMP mode Max. 45W – CLAMP mode Max. 20W
• Handpiece Model : US-50P
• Oscillator : PZT piezoelectric type
• Attachment fixing : M6 Thread
• Cable length : 6 ft
• Weight : 3 lb. 5 oz.
• Dimensions : ø0.63" (Max ø1.10) x L5.28"
US-50P Set Included Equipment:
• Controller {NE330 120V)
• Ultrasonic Handpiece (US-50P)
• Power Cable
• Included Accessories: 1 set [ Tip Holder (60902, 60922) 2 pcs., Ceramic fiber grindstone (60735) 1 pc., Electroplated diamond file (60101) 1 pc.]
• Tool box (plastic): 1 pc.
• Wrench (10 mm)
• Allen Wrench (2.5 mm)
• Foot Pedal (FC-24): 1 pc.
• Fuse AC120V (T1 .6AH 250V): 2 pcs
