ECI Single Position Tool Holder
ECI Single Position Tool Holder
Availability:
In Stock
Product SKU:
TBS-1356
Prop 65
Warning
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
$0.00

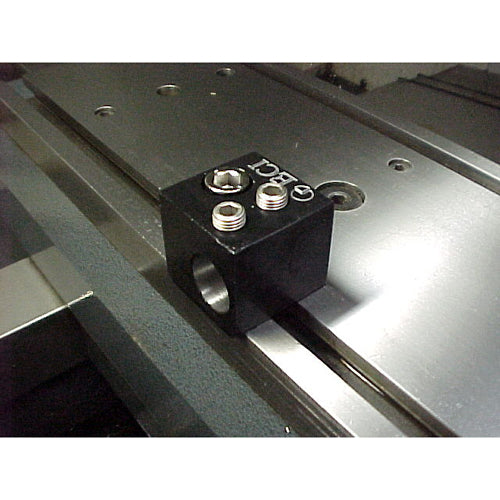

This single position tool holder allows you to create a custom set up to accommodate any job. Allows spacing tools of varying lengths, so as not to hit the collet when using a shorter tool. Offset bore provides clearance for use with OD insert turning bar. RH = bore to the right when facing spindle; LH = bore to the left (as shown in photo).
Smaller width to save space in the X axis. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.
Smaller width to save space in the X axis. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.

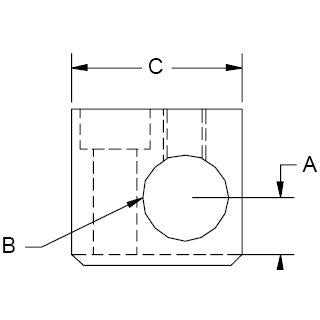

| Order # | Description | A | B | C |
|---|---|---|---|---|
| TBS-1356 |
3/8” Center, 5/8” Bore, RH |
0.625 | 0.375 | 1.5 |
| TBS-1357 | 3/8” Center, 5/8” Bore, LH | 0.625 | 0.375 | 1.5 |
| TBS-1456 | 1/2” Center, 5/8” Bore, RH | 0.625 | 0.500 | 1.5 |
| TBS-1457 | 1/2” Center, 5/8” Bore, LH | 0.500 | 0.625 | 1.5 |
| TBS-1466 | 1/2” Center, 3/4” Bore, RH | 0.500 | 0.750 | 1.5 |
| TBS-1467 | 1/2” Center, 3/4” Bore, LH | 0.500 | 0.750 | 1.5 |
| TBS-1426 | 12mm Center, 20mm Bore, RH | 12.7mm | 20 | 38mm |
| TBS-1427 | 12mm Center, 20mm Bore, LH | 12.7mm | 20 | 38mm |
|
TBS-1666
|
3/4” Center, 3/4” Bore, RH | 0.750 | 0.750 | 1.5 |
| TBS-1667 | 3/4” Center, 3/4” Bore, LH | 0.750 | 0.750 | 1.5 |
| TBS-1626 | 19mm Center, 20mm Bore, RH | 19mm | 20mm | 38mm |
| TBS-1627 | 19mm Center, 20mm Bore, LH | 19mm | 20mm | 38mm |
This single position tool holder allows you to create a custom set up to accommodate any job. Allows spacing tools of varying lengths, so as not to hit the collet when using a shorter tool. Offset bore provides clearance for use with OD insert turning bar. RH = bore to the right when facing spindle; LH = bore to the left (as shown in photo).
Smaller width to save space in the X axis. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.
Smaller width to save space in the X axis. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.
