ECI 8 Position Tool Holder
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

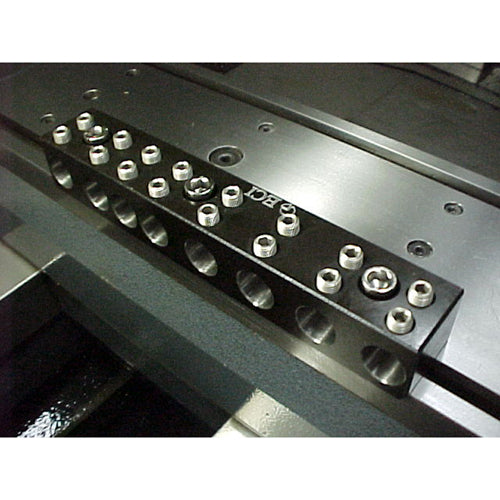

This ECI 8 position tool holder is perfect for repeat production runs, after the first set up and production run, save the tool offsets in your program. Remove the holder with all tooling clamped in place. On the next production run, simply reinstall and load your program. The 8 position tool holder also has a range of bores on closer .875 to save space. Overall length of 9” allows flexibility on big setups. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.

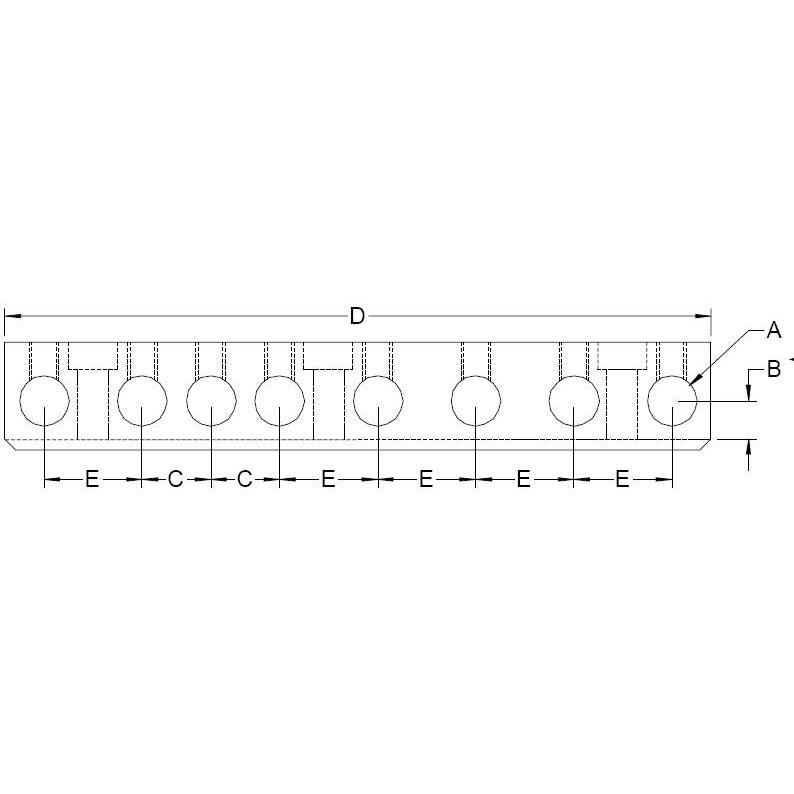

| SKU | Description | A | B | C | D | E |
|
TBS-8350 No Longer Available |
3/8" Center Height, 5/8" Bore | 0.6250 | 0.3750 | 0.875 | 9.000 | 1.250 |
| TBS-8450 | 1/2" Center Height, 5/8" Bore | 0.6250 | 0.5000 | 0.875 | 9.000 | 1.250 |
|
TBS-8460 No Longer Available |
1/2" Center Height, 3/4" Bore | 0.7500 | 0.5000 | 0.875 | 9.000 | 1.250 |
| TBS-8420 | 1/2" Center Height, 20mm Bore | 20mm | 0.5000 | 0.875 | 9.000 | 1.250 |
This ECI 8 position tool holder is perfect for repeat production runs, after the first set up and production run, save the tool offsets in your program. Remove the holder with all tooling clamped in place. On the next production run, simply reinstall and load your program. The 8 position tool holder also has a range of bores on closer .875 to save space. Overall length of 9” allows flexibility on big setups. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.
| SKU | Description | A | B | C | D | E |
|
TBS-8350 No Longer Available |
3/8" Center Height, 5/8" Bore | 0.6250 | 0.3750 | 0.875 | 9.000 | 1.250 |
| TBS-8450 | 1/2" Center Height, 5/8" Bore | 0.6250 | 0.5000 | 0.875 | 9.000 | 1.250 |
|
TBS-8460 No Longer Available |
1/2" Center Height, 3/4" Bore | 0.7500 | 0.5000 | 0.875 | 9.000 | 1.250 |
| TBS-8420 | 1/2" Center Height, 20mm Bore | 20mm | 0.5000 | 0.875 | 9.000 | 1.250 |
