ECI 3 Position Tool Holder


ECI 3 Position Tool Holder

Add Your Review
Availability: In Stock
Product SKU: TBS-3354
Prop 65
Warning

This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

$0.00

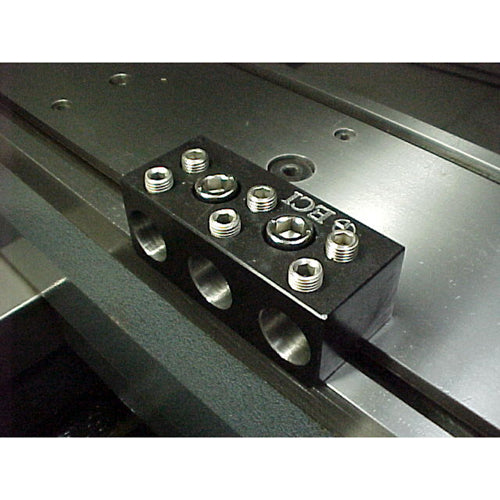

This ECI 3 position tool holder is the most versatile and frequently used tool holder. This tool is ideal for mounting groups of tools for drilling, tuning or boring work. Spot, drill, and tap station. Two hold down bolts for enhanced rigidity. Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.

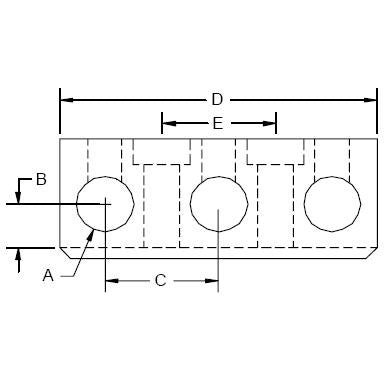

Order # Description A B C D E
TBS-3354 3/8” center height,
5/8” bore		 0.625 0.500 1.25 2.2 1.25
TBS-3454 1/2” center height,
5/8” bore		 0.625 0.500 1.25 2.2 1.25
TBS-3464 1/2” center height,
3/4” bore		 0.750 0.500 1.25 2.2 1.25
TBS-3664 3/4” center height,
3/4” bore		 0.750 0.750 1.25 2.2 1.25
