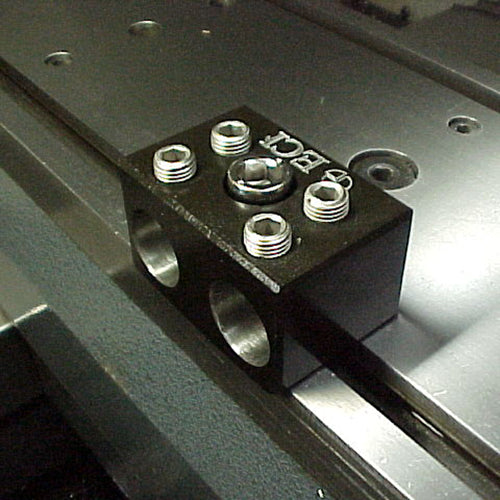

ECI 2 Position Tool Holder
ECI 2 Position Tool Holder
Availability:
In Stock
Product SKU:
TBS-2354
Prop 65
Warning
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
$0.00
This ECI 2 position tool holder is slightly wider than the single position with a compact area for two operations. Gives ability to ID bore and OD turn without reversing spindle. Use a split point drill first then bore 2nd without need of a center drill.
Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.
Differential spacing of the holes in each holder allow different tool configurations for narrow and wide spaced tools on one block. An end stop mounted to the table provides repeatable location of the tool block for quick changeover of setups.
| Order # | Description | A | B | C | D |
|---|---|---|---|---|---|
| TBS-2354 | 3/8” Center, 5/8” Bore | 0.625 | 0.375 | 1.25 | 2.2 |
| TBS-2454 | 1/2” Center, 5/8” Bore | 0.625 | 0.500 | 1.25 | 2.2 |
| TBS-2464 | 1/2” Center, 3/4” Bore | 0.750 | 0.500 | 1.25 | 2.2 |
| TBS-2420 | 12mm Center, 20mm Bore | 20mm | 12mm | 32mm | 56mm |
| TBS-2664 | 3/4” Center, 3/4” Bore | 0.750 | 0.750 | 1.25 | 2.2 |
| TBS-2620 | 19mm Center, 20mm Bore | 20mm | 19mm | 32mm | 56mm |
| TBS-2684 | 3/4” Center, 1.0” Bore | 1.000 | 0.750 | 1.50 | 2.75 |
