UHT TurboLap Air Filer
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
TurboLap filers are ideal tools for deburring or finishing ribs, slots, and other intricate parts. An economical air filer well suited for any mold and die shop's polishing bench. The patented, turbodrive mechanism provides high speed and torque in either a linear or elliptical "swing" motion. The linear-stroke is designed for draw-filing narrow areas; the swing stroke provides a unique elliptical stroke well suited for finishing side walls at bottoms of mold cavities.
Choose a fixed stroke of 0.3, 0.7, or 1.2mm. Stroke frequency is controlled by means of a ring throttle. The design of the TurboLap is light and well balanced using an ergonomic, soft grip housing for comfort. Air exhausts out the back overhose providing a relatively quiet 59-72dB(A) noise level.

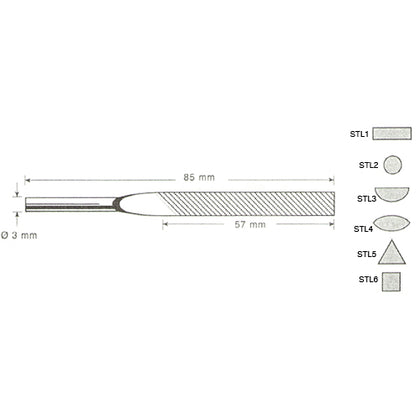

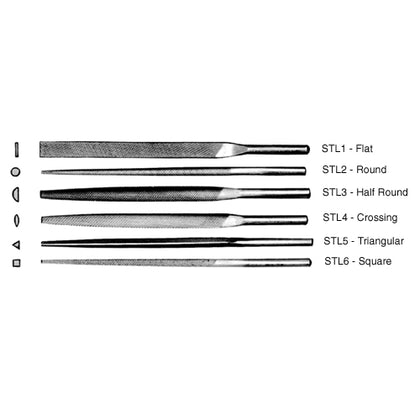

Commonly used with ceramic Super Stones or diamond coated tapered machine files. The most common model TurboLap sold is TLL-07. Made in Japan.
NOTE: Only the TLL-07 is stocked, all other models have a 7-10 day delivery.
Features:
• Fixed Stroke Lengths: 0.3 / 0.7 / 1.2mm
(0.012" / 0.028" / 0.047")
• Tool Holder Capacity: 1/8" diameter, 1/8" x 3/8" stones
• Tool Dimensions: 7/8" to 1.1" diameter x 8½" long
• Weight: 180g (6.4oz.)
• Recommended Air Pressure: 6.3 bar (90psig)
• Use with Filter/Regulator unit (AW20).
No oil needed.

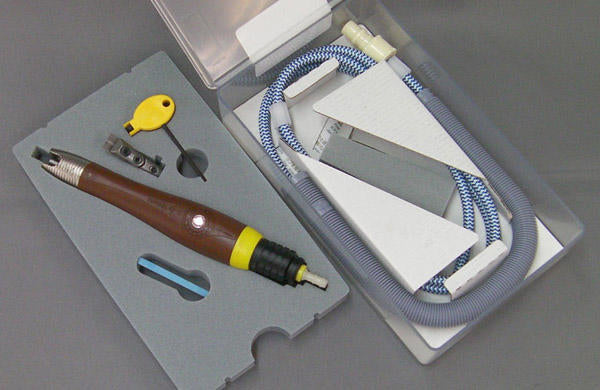

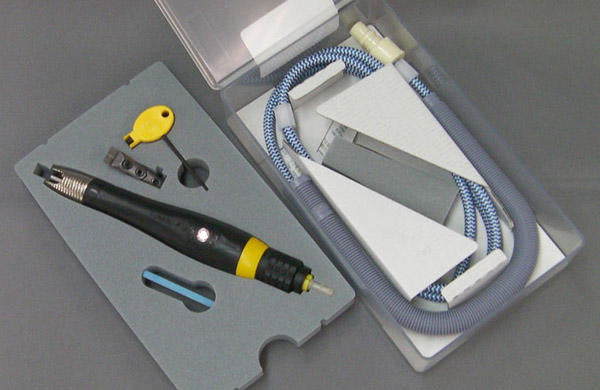

Accessories included with TurboLaps:
• Ceramic Super Stone (1x6x50mm - Blue)
• 1.5mm Air intake Hose (U4025)
• Exhaust Overhose (U4027)
• Air Fitting - 1/4NPT (U4026)
• Tool Holder (T0513) and Hex Wrench (T2649)
Order # | TLL-03 | TLL-07 | TLL-12 | TLS-03 | TLS-07 | TLS-12 |
---|---|---|---|---|---|---|
Stroke |
Linear 0.3 |
Linear 0.7 |
Linear 1.2 |
Swing 0.3 |
Swing O.7 |
Swing 1.2 |
Stroke (inch) |
Linear 0.012 |
Linear 0.028 |
Linear 0.047 |
Swing 0.012 |
Swing 0.028 |
Swing 0.047 |
Stroke Frequency (spm) |
45,000- 50,000 |
22,000- 25,000 |
15,000- 18,000 |
48,000- 53,000 |
16,000- 18,000 |
10,000- 13,000 |
Air Use (cfm) |
4.4 | 1.6 | 1.8 | 4.4 | 1.6 | 1.4 |
