Adjustable Tool Holder Base
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

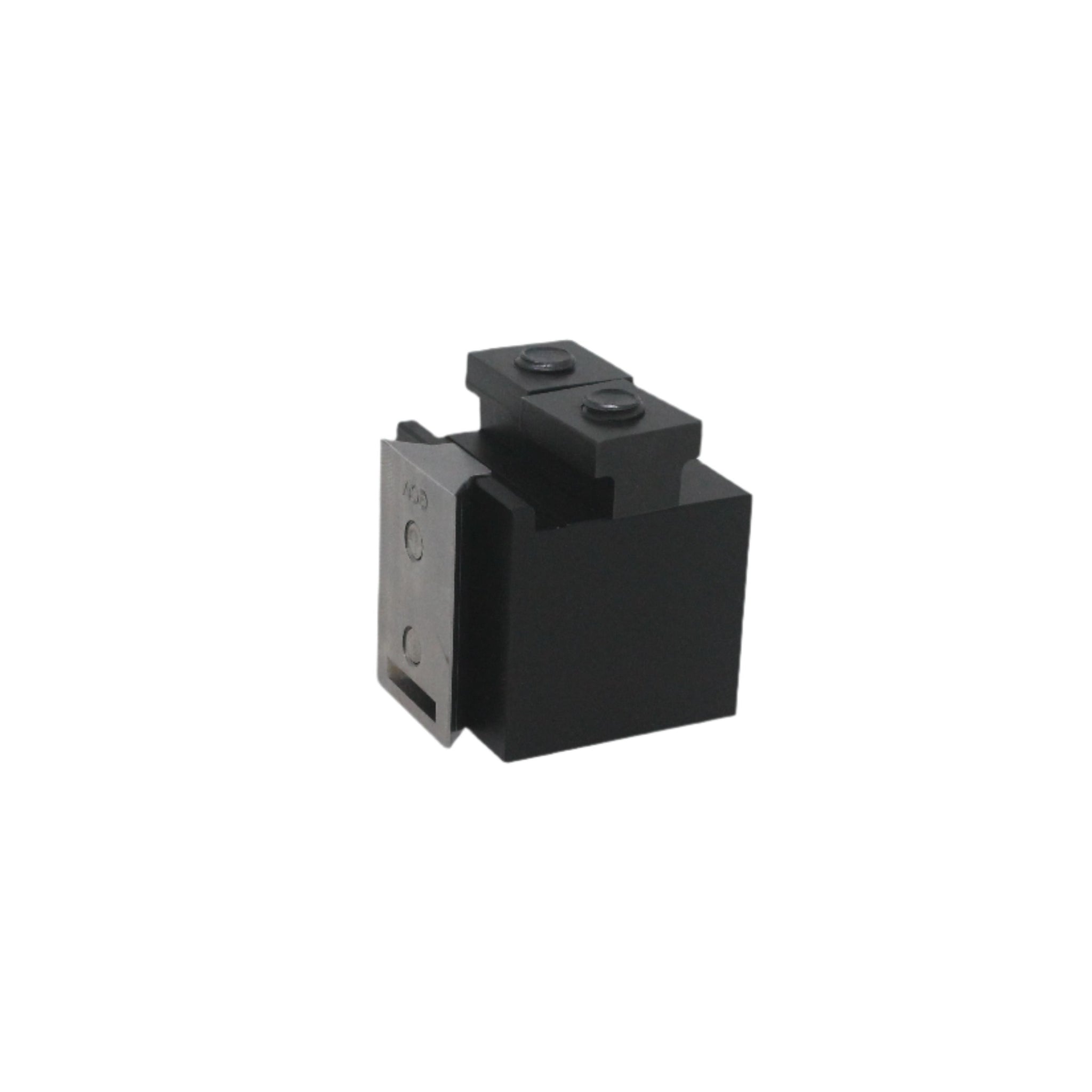

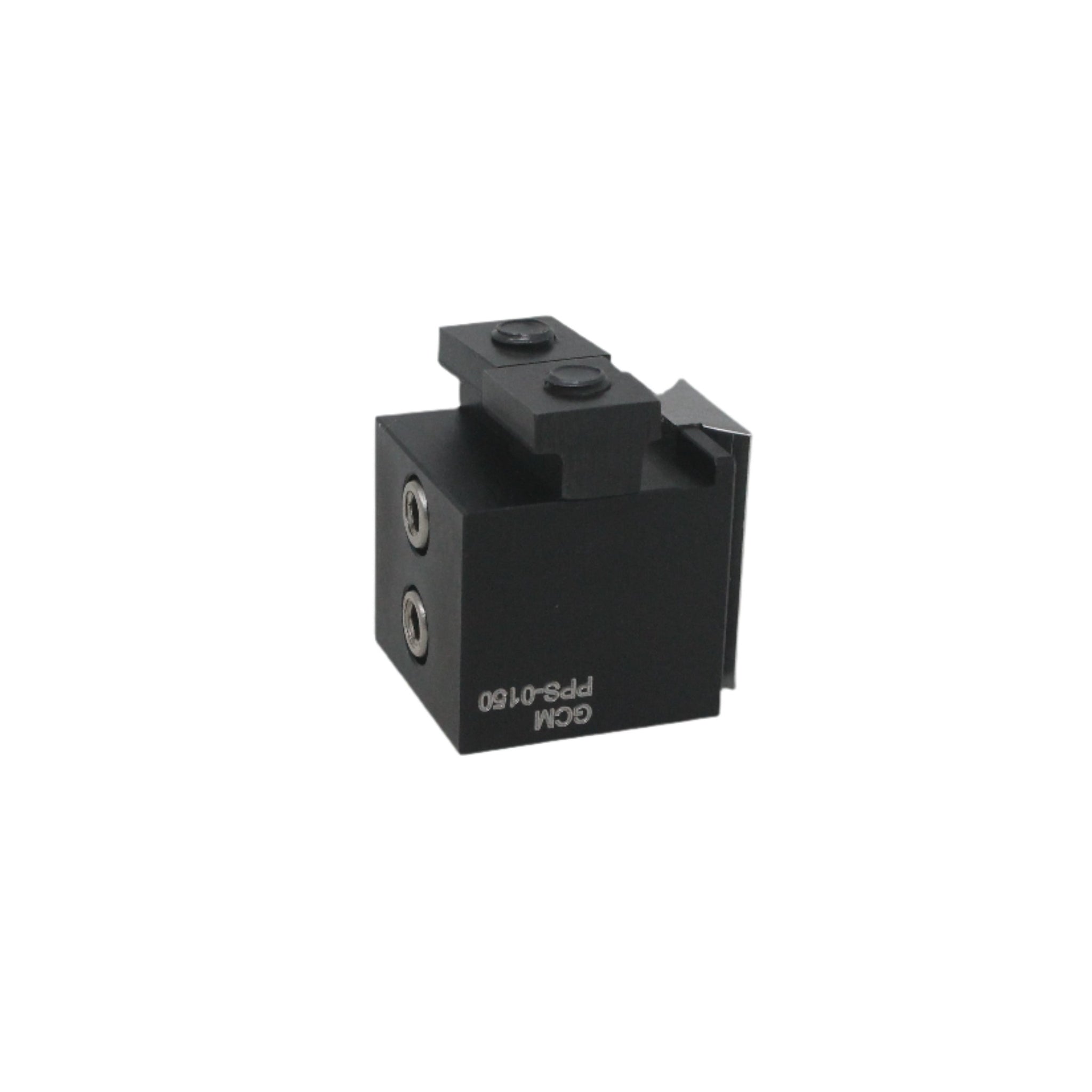

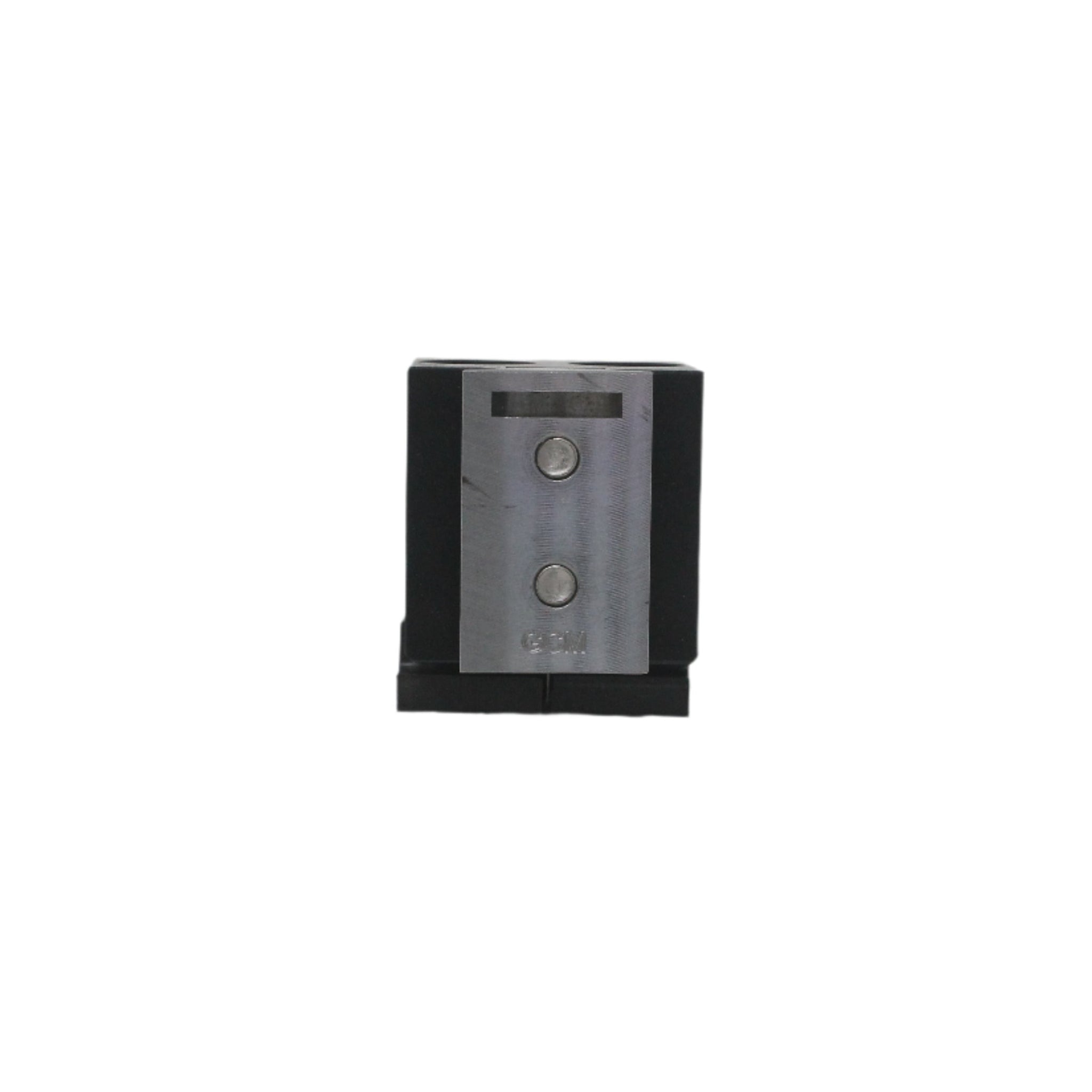

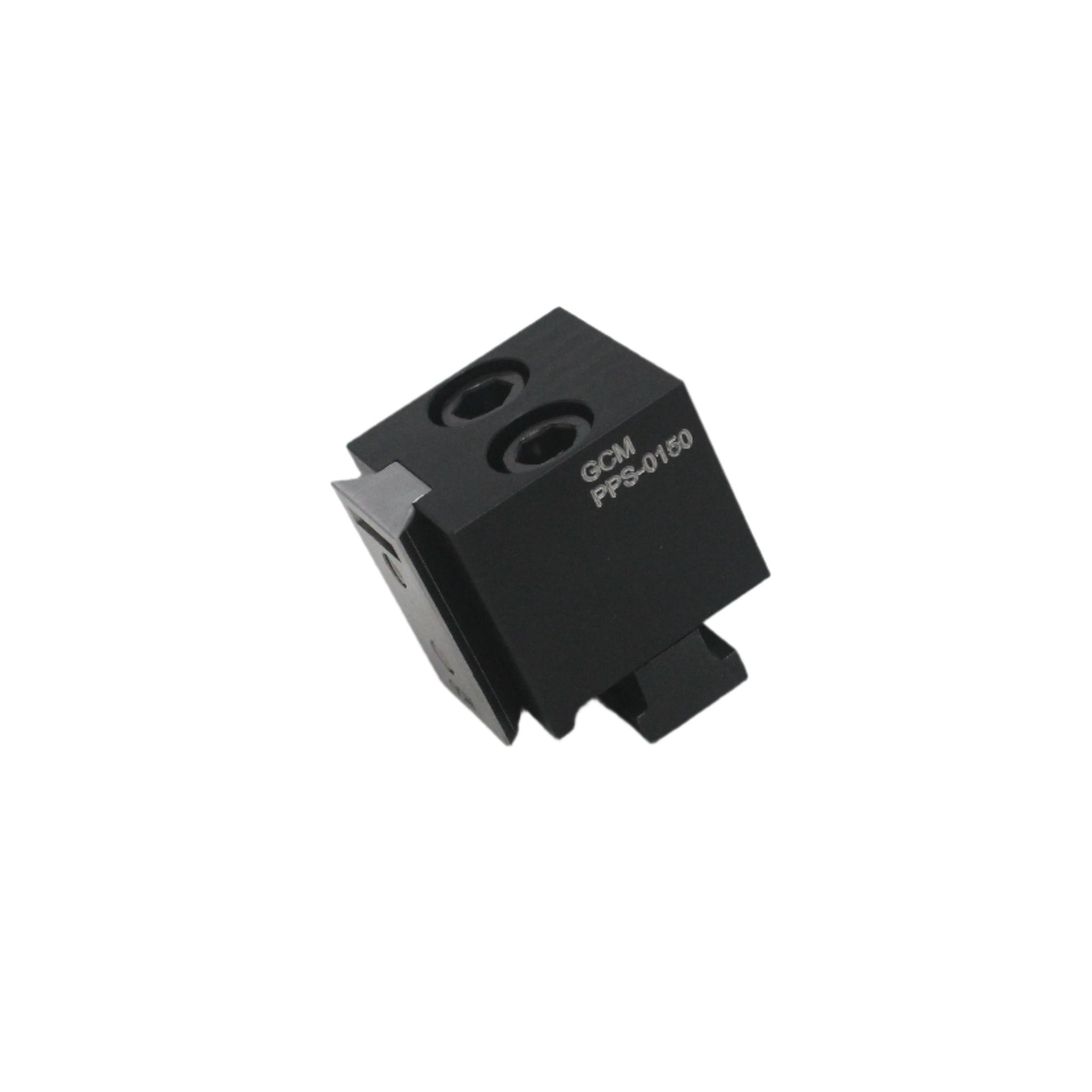

The Gang Turn Tool Holder system provides an easy to use, accurate tool alignment system. Each post comes with a wedge clamp and locking screws attached. A dowel pin aligns the wedge to stop vertical movement. Hold down bolts are attached to the T-nuts.
Each tool holder head comes with a vertical adjustment screw. To attach a tool holder head to a post, remove the adjusting screw from the head and loosen the locking screws on the post. Slide the head onto the clamp wedge, and replace the adjusting screw so that the flange of the adjusting screw is interlocked into the clamp wedge. This allows the adjusting screw to either raise of lower the head.
To fine adjust the center height, follow these steps:
• Loosen the top locking screw and lightly snug back down,
• Loosen the second screw (usually the lower screw),
• Adjust the tool up or down by turning the adjusting screw,
• Lock both locking screws tightly in place.
If you are setting live tools or require exact positioning of a tool, use a dial indicator on a mag-base to check the amount of movement.
| Part Number | Description |
| ATB-0150 | Adjustable Turning Tool Base - 1/2" Center Height |
The Gang Turn Tool Holder system provides an easy to use, accurate tool alignment system. Each post comes with a wedge clamp and locking screws attached. A dowel pin aligns the wedge to stop vertical movement. Hold down bolts are attached to the T-nuts.
Each tool holder head comes with a vertical adjustment screw. To attach a tool holder head to a post, remove the adjusting screw from the head and loosen the locking screws on the post. Slide the head onto the clamp wedge, and replace the adjusting screw so that the flange of the adjusting screw is interlocked into the clamp wedge. This allows the adjusting screw to either raise of lower the head.
To fine adjust the center height, follow these steps:
• Loosen the top locking screw and lightly snug back down,
• Loosen the second screw (usually the lower screw),
• Adjust the tool up or down by turning the adjusting screw,
• Lock both locking screws tightly in place.
If you are setting live tools or require exact positioning of a tool, use a dial indicator on a mag-base to check the amount of movement.
| Part Number | Description |
| ATB-0150 | Adjustable Turning Tool Base - 1/2" Center Height |
