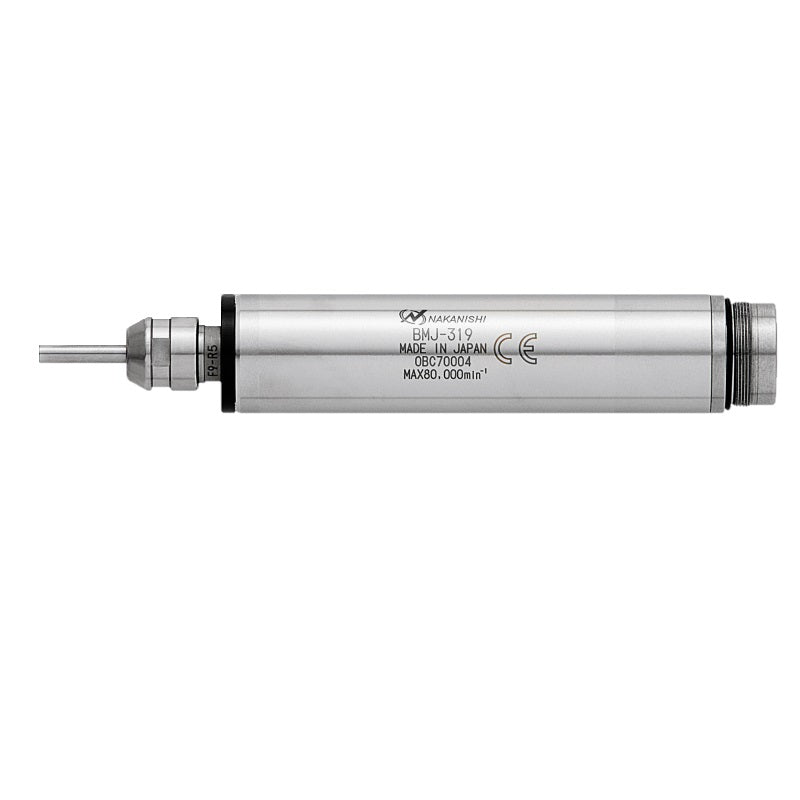

NSK Nakanishi BMJ-319 iSpeed3 Spindle - Ø 0.75" - 80,000 rpm
This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.
This NSK Nakanishi BMJ-319 iSpeed3 Series' shorter spindle length is suitable for compact sized automatic CNC lathes. The iSpeed3 Series have sensorless motors and are equipped with super precision hybrid ceramic bearings for longer spindle life. Motor connector attaches directly to the back of the Motor / Spindle. Simple screw-lock connector makes changing motors extremely easy. Electric ad Air feed incorporated into a single connector. A maximum motor speed 80,000 min., rpm. is realized by using a high performance brushless motor and ceramic bearings.
- Motor Speed: 1,000 - 80,000 rpm
- Max. Output Power: 140 Watt
- Spindle Accuracy: Within 1 µm
- Weight: 5.11 oz.
- NSK Catalog Number: 7819
Included Equipment:
- Chuck Nut (CHN-A - 2102): 1 pc.
- Wrench (8×5mm - 2012) & (9×11 - 2054): 1 pc. each
Optional Equipment:
- Collet Chuck (CHA): Ø 0.5 mm~ Ø 4.0 mm in 0.1 mm increments and 2.35mm, Ø 1/8"
- Motor Cord: Choice of Straight or Angle, Choice of Length, 10 ft., 16 ft., or 22 ft.
This NSK Nakanishi BMJ-319 iSpeed3 Series' shorter spindle length is suitable for compact sized automatic CNC lathes. The iSpeed3 Series have sensorless motors and are equipped with super precision hybrid ceramic bearings for longer spindle life. Motor connector attaches directly to the back of the Motor / Spindle. Simple screw-lock connector makes changing motors extremely easy. Electric ad Air feed incorporated into a single connector. A maximum motor speed 80,000 min., rpm. is realized by using a high performance brushless motor and ceramic bearings.
- Motor Speed: 1,000 - 80,000 rpm
- Max. Output Power: 140 Watt
- Spindle Accuracy: Within 1 µm
- Weight: 5.11 oz.
- NSK Catalog Number: 7819
Included Equipment:
- Chuck Nut (CHN-A - 2102): 1 pc.
- Wrench (8×5mm - 2012) & (9×11 - 2054): 1 pc. each
Optional Equipment:
- Collet Chuck (CHA): Ø 0.5 mm~ Ø 4.0 mm in 0.1 mm increments and 2.35mm, Ø 1/8"
- Motor Cord: Choice of Straight or Angle, Choice of Length, 10 ft., 16 ft., or 22 ft.
