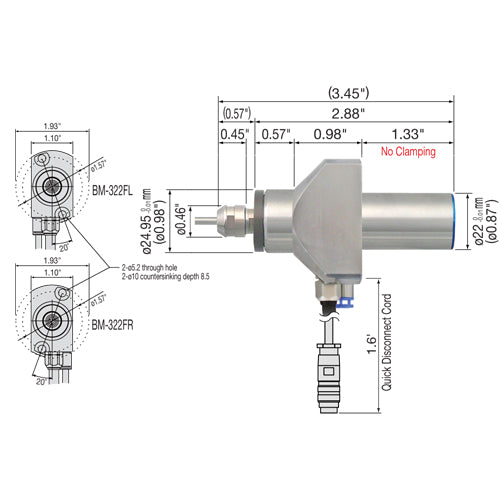

NSK Nakanishi BM-322FL iSpeed3 Flange Spindle - Ø 0.87'' - 60,000 RPM


NSK Nakanishi BM-322FL iSpeed3 Flange Spindle - Ø 0.87'' - 60,000 RPM

Add Your Review
Availability: In Stock
Product SKU: BM-322FL
Prop 65
Warning

This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

Please Login to View Pricing

This NSK Nakanishi iSpeed3 Series' shorter spindle length is suitable for compact sized automatic CNC lathes. The iSpeed3 Series have sensorless motors and are equipped with super precision hybrid ceramic bearings for longer spindle life. Motor connector attaches directly to the back of the Motor / Spindle. Simple screw-lock connector makes changing motors extremely easy. Electric ad Air feed incorporated into a single connector. A maximum motor speed 60,000 min., rpm. is realized by using a high performance brushless motor and ceramic bearings.

  • Motor Speed: 1,000 - 60,000 rpm
  • Max. Output Power: 150W
  • Spindle Accuracy: Within 1 µm
  • Weight: 12.70 oz.
  • NSK Catalog Number: 7639

Included Equipment:

  • Chuck Nut (CHN-A): 1 pc.
  • Wrench (8 x 5) & (9 x 11): 1 pc. each

Optional Equipment:

  • Collet Chuck (CHA-[][]): Ø 0.5 mm~ Ø 4.0 mm in 0.1 mm increments and 2.35mm, Ø 1/8"
  • Chuck Nut (CHN-A): For Collet Chuck (CHA)
  • Motor Cord: Length 10 ft, 16 ft, 22 ft.
