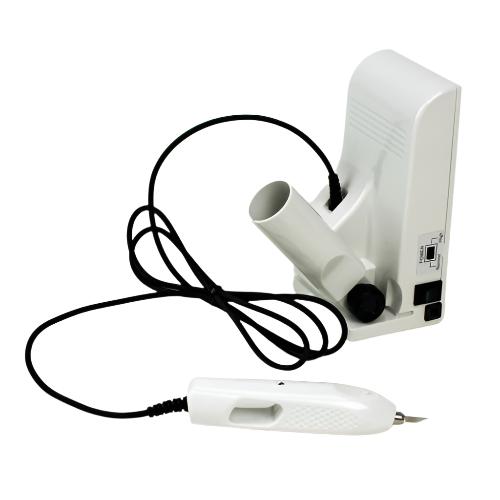

Honda ZO-91 Ultrasonic Cutter


Honda ZO-91 Ultrasonic Cutter

Add Your Review
Availability: In Stock
Product SKU: ZO-91
Prop 65
Warning

This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

$570.00

The Honda ZO-91 ultrasonic cutter uses 40,000 vibrations per second with non-audible sound to assist in making smooth cuts with significantly reduced friction. The ZO-91 is the latest ultrasonic cutter from Honda and incorporates the following features:

  • Newly integrated High mode boosts the power of cutting (5 minutes duration).
  • Unique "TAF" circuit keeps the output power stable and powerful.
  • Unlike other models, there is no need to keep holding down the operation switch on the handpiece switch (turns off automatically after 10 minutes operation).
  • High speed vibration, 40,000 cycle per second (40 kHz) assists smooth cutting with less pressure force.
  • The main unit has a handpiece holder for safe placement while not in use.

Designed for Ultrasonic cutting of synthetic resin, Plastic. Epoxy putty, Paper, Cardboard, Chemical fiber/ cloth, Polyester putty, 3D printed material, and Silicone up to 3mm in thickness. (Note: The cutting experience described above may vary by the environment and hardness of the material.)

Specifications:

Oscillation Frequency 40kHz
Output Power 30 W
Output Frequency 40 kHz
Power Source (AC Adapter) 100 - 240V AC, 50/60 Hz, 40 VA
Control Unit Dimensions 173 × 89 × 76mm
Handpiece Dimensions 32 Ø × 144mm (including blade)
Control Unit Weight 260g
Handpiece Weight 100g (including  cable)
