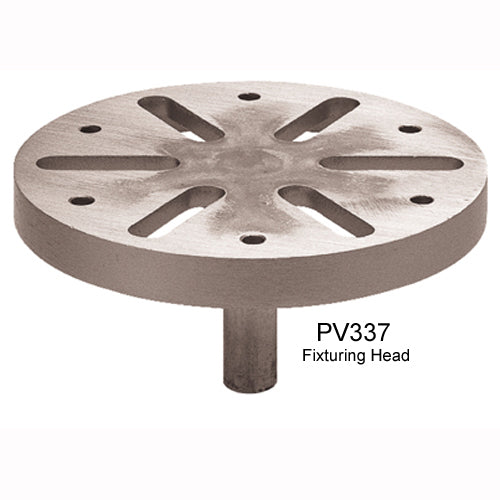

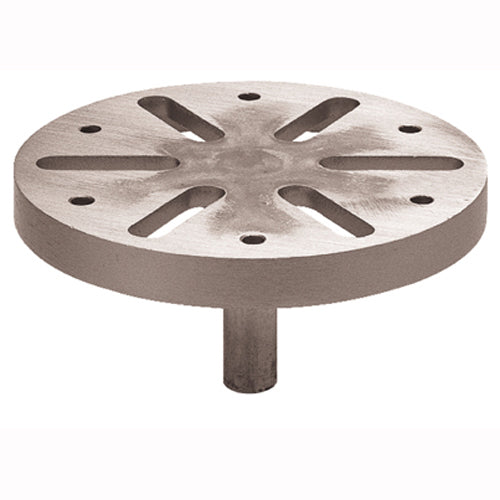

PanaVise Fixturing Head Model #337


PanaVise Fixturing Head Model #337

Add Your Review
Availability: In Stock
Product SKU: PV337
Prop 65
Warning

This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information on this product, please refer to the SDS file. For more information on Prop 65, please visit www.p65warnings.ca.gov.

$29.99
Exceptional choice for woodworkers and pattern
makers. Model #337 features:

• Work can be attached easily to this universal
Fixturing Head.
• Six slots are 0.4375" (11.1mm) wide and 1.1875"
(30.2mm) long; six 0.25" (6.3mm) bolt holes are
evenly spaced on a 4.375" (11.1mm) bolt circle.
• Flat surface: 5.375" (136.5mm) in diameter.
• Shaft is 4.125" (104.8mm) l0ng and 5/8" (15.9mm)
in diameter; compatible with any Model 300 Base .
• Height (shaft to top of head): 3.75" (95.2mm).





Exceptional choice for woodworkers and pattern
makers. Model #337 features:

• Work can be attached easily to this universal
Fixturing Head.
• Six slots are 0.4375" (11.1mm) wide and 1.1875"
(30.2mm) long; six 0.25" (6.3mm) bolt holes are
evenly spaced on a 4.375" (11.1mm) bolt circle.
• Flat surface: 5.375" (136.5mm) in diameter.
• Shaft is 4.125" (104.8mm) l0ng and 5/8" (15.9mm)
in diameter; compatible with any Model 300 Base .
• Height (shaft to top of head): 3.75" (95.2mm).
